kvCore

Real estate CRM for contacts, tags, and agent lead management.

1 trigger2 searches6 actionsPollingAuth: API key

AI-assisted documentation6 min read

This documentation is compiled from our integration source code, internal specs for kvCore, its official API documentation and anonymized requests logs we collect from our support team[2].

Open kvCore on WEXTL →

Requirements

To use kvCore on WEXTL you need an active account and an API access token from your account settings.[3]

Get your kvCore credentials

API KeytextRequired
API key can be obtained from Dashboard -> Lead Engine -> Generate New API Token. (from My API Tokens section).
[1]

Connect kvCore in WEXTL

Log in to your WEXTL account, add the kvCore node module to your workflow, and click Create new credential.
Optional: In the Credential name field, enter a name for the credential.
Enter the authentication credentials you copied from your kvCore account, or follow the on-screen instructions to create the credential.
If prompted, authenticate your account and confirm access.
If you want to make changes to your credential in the future, follow the steps in Manage credentials →

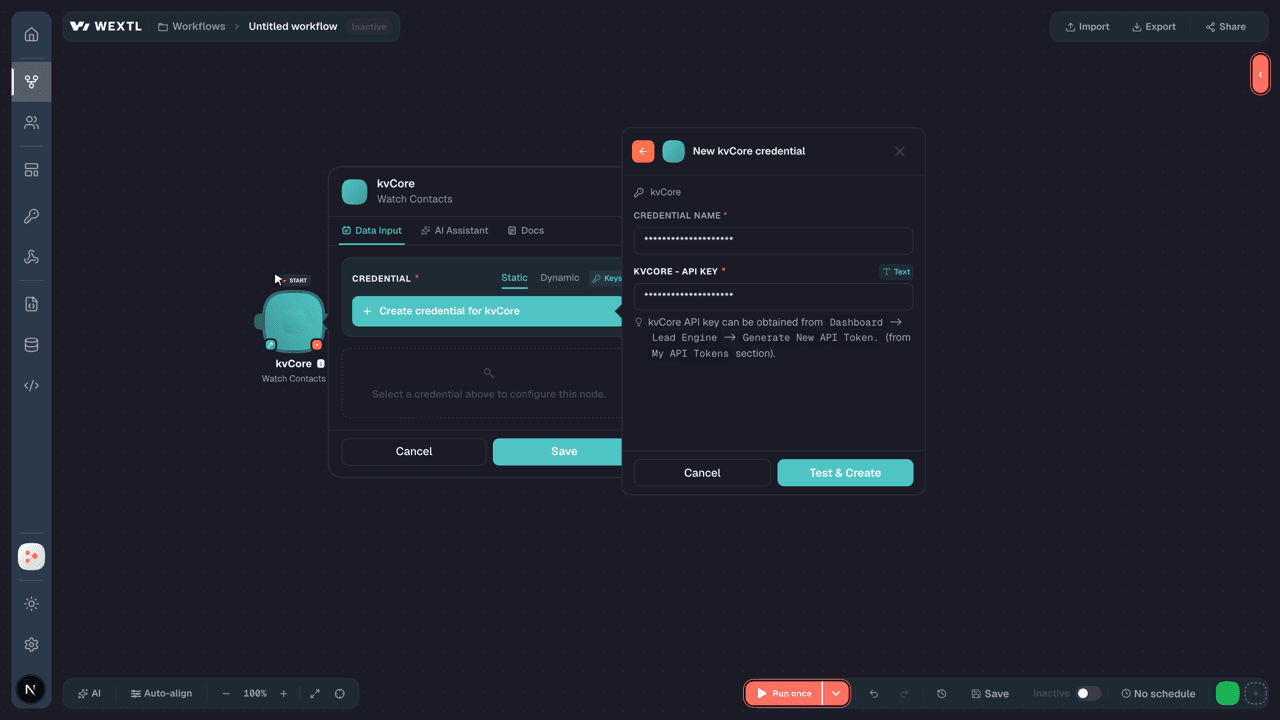

Connecting kvCore to WEXTL® — Video slide demonstrates how to integrate kvCore in the WEXTL visual workflow builder.[4]

Video slide demonstrates how to integrate kvCore in the WEXTL visual workflow builder.[4]

Notes

Credentials are org-scoped; share them with teammates from the Credentials picker on any of its nodes.For detailed information on connecting an application, see Connect an application →

kvCore node modules

The list below is a reference of every kvCore node module the integration supports. You will be able to pick any of them on the workflow canvas while building automations.

Open any kvCore node module below to inspect its input parameters, outputs, and connection requirements.

Watch ContactsTrigger

Output fields[3]

Field	Type
First Name	text
Last Name	text
Email	text
Cell Phone 1	number
Cell Phone 2	text
Home Phone	number
Work Phone	number
Deal Type	text
Status	number
Rating	number
Source	text
System Source	text
Capture Method	text
Registered	date
Email Optin	number
Phone On	number
Text On	number
Tcpa Optin Date	text
Avg Price	number
Avg Beds	number

39other output fields

Get a ContactAction

Input fields[3]

Field	Type
Contact IDRequired	choice

Output fields[3]

Field	Type
First Name	text
Last Name	text
Email	text
Cell Phone 1	number
Cell Phone 2	text
Home Phone	number
Work Phone	number
Deal Type	text
Status	number
Rating	number
Source	text
System Source	text
Capture Method	text
Registered	date
Email Optin	number
Phone On	number
Text On	number
Tcpa Optin Date	text
Avg Price	number
Avg Beds	number

39other output fields

Search ContactsSearch

Input fields[3]

Field	Type
Email Filter	text
First Name Filter	text
Last Name Filter	text
Updated at Filter	date
Source Filter	array
System Source Filter	array
Lead Type Filter	array
Registered After Filter	date
Registered Before Filter	date
Status Filter	choice
Assigned Agent ID Filter	number
Include Archived Leads	choice
Limit	number

Output fields[3]

Field	Type
First Name	text
Last Name	text
Email	text
Cell Phone 1	number
Cell Phone 2	text
Home Phone	number
Work Phone	number
Deal Type	text
Status	number
Rating	number
Source	text
System Source	text
Capture Method	text
Registered	date
Email Optin	number
Phone On	number
Text On	number
Tcpa Optin Date	text
Avg Price	number
Avg Beds	number

39other output fields

Add a Note to a ContactAction

Input fields[3]

Field	Type
Contact IDRequired	choice
Note TitleRequired	text
Note DetailsRequired	text
Date and Time	date
Owner User ID	text

Output fields[3]

Field	Type
Action ID	number
Date	text
Title	text
Details	text
Action Owner User ID	number

Add a Tag to a ContactAction

Input fields[3]

Field	Type
Contact IDRequired	choice
Tags to AddRequired	array
Tag NameRequired	text
Locked StatusRequired	choice

Output fields[3]

Field	Type
Contact ID	number
Tags	array

Create a ContactAction

Input fields[3]

Field	Type
Email AddressRequired	email
Cell Phone 1Required	number
First Name	text
Last Name	text
Home Phone	number
Work Phone	number
Deal Type	text
Primary City	text
Primary State	text
Primary Zip	text
Primary Address	text
Status	choice
Source	text
email_optin	number
phone_on	number
text_on	number
rating	number
Capture Method	text
Assigned Agent ID	text
Assigned Agent External ID	text

20other input fields

Output fields[3]

Field	Type
Contact ID	number

Delete Tags from a ContactAction

Input fields[3]

Field	Type
Contact IDRequired	choice
Tags to RemoveRequired	array
Tag Name	text

Output fields[3]

Field	Type
Contact ID	number
Tags	array

Make an API Calluniversal

Input fields[3]

Field	Type
URLRequired	text
MethodRequired	choice
Headers	array
Key	text
Value	text
Query String	array
Key	text
Value	text
Body	text

Output fields[3]

Field	Type
Body	text
Headers	object
Status code	number

Update a ContactAction

Input fields[3]

Field	Type
Contact IDRequired	choice
Email AddressRequired	email
Cell Phone 1Required	number
First Name	text
Last Name	text
Home Phone	number
Work Phone	number
Deal Type	text
Primary City	text
Primary State	text
Primary Zip	text
Primary Address	text
Status	choice
Source	text
email_optin	number
phone_on	number
text_on	number
rating	number
Capture Method	text
Assigned Agent ID	text

21other input fields

Output fields[3]

Field	Type
Contact ID	number

Templates

Look for kvCore templates in the WEXTL template library.

Browse templates →
