Requirements
Before you set up the credential, make sure you have an active Infraspeak account and an API access token from your account settings ready.[3]
Get your Infraspeak credentials
- Personal Access TokenpasswordRequired
Your Personal Access Token (PAT). Contact Infraspeak to obtain one for sandbox or production.
[1]

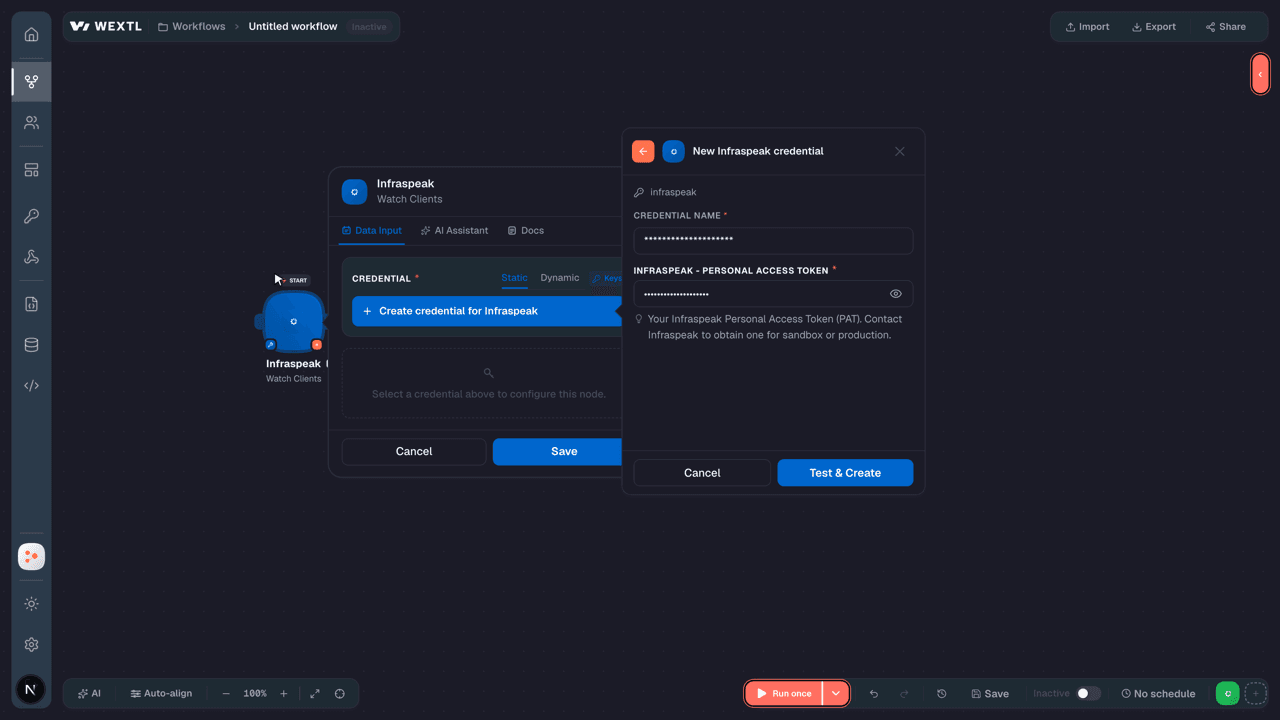

Connect Infraspeak in WEXTL
- Log in to your WEXTL account, add the Infraspeak node module to your workflow, and click Create new credential.
- Optional: In the Credential name field, enter a name for the credential.
- Enter the authentication credentials you copied from your Infraspeak account, or follow the on-screen instructions to create the credential.
- If prompted, authenticate your account and confirm access.
- If you want to make changes to your credential in the future, follow the steps in Manage credentials →
Notes
Credentials are org-scoped; share them with teammates from the Credentials picker on any of its nodes.For detailed information on connecting an application, see Connect an application →
Infraspeak node modules
The list below is a reference of every Infraspeak node module the integration supports. You will be able to pick any of them on the workflow canvas while building automations.
Each Infraspeak node module below opens to reveal its input parameters, outputs, and connection requirements.
Watch ClientsTrigger
Output fields[3]
| Field | Type |
|---|---|
| Type | text |
| ID | text |
| Attributes | object |
| Client ID | number |
| Name | text |
| Code | text |
| Nif | text |
| Address | text |
| Postal code | text |
| City | text |
| Country | text |
| Observations | text |
Watch ContactsTrigger
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Contact ID | number |
| Entity ID | number |
| Cellphone | text |
| Language | text |
| Full name | text |
| Phone | text |
| Is direct user | boolean |
| Has access | boolean |
| Relationships | object |
| Suppliers | object |
| Clients | object |
| Extensions permissions | object |
| Locals | object |
| Profile picture | object |
| User | object |
Watch OperatorsTrigger
Output fields[3]
| Field | Type |
|---|---|
| Type | text |
| ID | text |
| Attributes | object |
| Operator ID | number |
| Operator UUID | text |
| Full name | text |
| text | |
| Phone | text |
| Cellphone | text |
| Account | text |
| Language | text |
| Cost per hour | number |
| Warehouse ID | number |
Watch QuotesTrigger
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Quote ID | number |
| Quote UUID | text |
| Code | number |
| Client ID | number |
| State | text |
| Entity ID | number |
| Created at | date |
| Created by | number |
| Started at | text |
| Started by | number |
| Meta | object |
| Custom fields | object |
Watch Scheduled WorksTrigger
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Entity ID | number |
| Complete date | text |
| Cost center name | text |
| Completed by ID | number |
| Completed percentage | number |
| Completed date | text |
| Confirmed | boolean |
| Failure ID | number |
| Last status change date | text |
| Last status change operator | text |
| Relationships | object |
| Audit stats | object |
| Buy orders | object |
| Client | object |
| Completed by | object |
| Element registries | object |
| Entity | object |
| Events | object |
| Events planned | object |
| Files | object |
| Gatekeeper answer registries | object |
Watch Sell OrdersTrigger
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Client ID | number |
| Code | number |
| Sell order UUID | text |
| State | text |
| Entity ID | number |
| Created at | text |
| Created by | number |
| Started at | date |
| Started by | number |
| Completed at | date |
| Meta | object |
| Custom fields | object |
Watch Stock TransactionsTrigger
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Warehouse ID | number |
| Material ID | number |
| Quantity | number |
| Action | text |
| Observations | text |
| Cost price | number |
| Created at | text |
| Operator ID | number |
Watch SuppliersTrigger
Output fields[3]
| Field | Type |
|---|---|
| Type | text |
| ID | text |
| Attributes | object |
| Supplier ID | number |
| Name | text |
| Code | text |
| Vat | text |
| Address | text |
| Postal code | text |
| City | text |
| Area | text |
| Country | text |
| Iban | text |
Watch WorksTrigger
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Calendar ID | number |
| Description | text |
| Type | text |
| Any responsible | boolean |
| Auto close | boolean |
| Auto pilot | boolean |
| Client ID | number |
| Cost center ID | number |
| Entity ID | number |
| Failure ID | number |
| Relationships | object |
| Network status | object |
Get a ClientAction
Get a LocationAction
Get a QuoteAction
Get a RequestAction
Get a Sell OrderAction
Get a SupplierAction
Get a WorkAction
Input fields[3]
| Field | Type |
|---|---|
Work IDRequired | choice |
| Expanded | choice |
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Calendar ID | number |
| Description | text |
| Type | text |
| Any responsible | boolean |
| Auto close | boolean |
| Auto pilot | boolean |
| Client ID | number |
| Cost center ID | number |
| Entity ID | number |
| Failure ID | number |
| Relationships | object |
| Network status | object |
Get a Work ScheduleAction
Input fields[3]
| Field | Type |
|---|---|
Scheduled Work IDRequired | choice |
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Entity ID | number |
| Complete date | text |
| Cost center name | text |
| Completed by ID | number |
| Completed percentage | number |
| Completed date | text |
| Confirmed | boolean |
| Failure ID | number |
| Last status change date | text |
| Last status change operator | text |
| Relationships | object |
| Audit stats | object |
| Buy orders | object |
| Client | object |
| Completed by | object |
| Element registries | object |
| Entity | object |
| Events | object |
| Events planned | object |
| Files | object |
| Gatekeeper answer registries | object |
Get an OperatorAction
List ClientsSearch
List ContactsSearch
Input fields[3]
| Field | Type |
|---|---|
| Expanded Relations | text |
| Filter by Client ID | choice |
| Filter by Contact ID | choice |
| Contact IDs to Include (comma-separated) | choice |
| Contact IDs to Exclude (comma-separated) | choice |
| Filter by Email (exact) | |
| Filter by Email (contains) | text |
| Filter by Name (exact) | text |
| Filter by Name (contains) | text |
| Filter by Phone | text |
| Has Access (1 or 0) | text |
| Is Direct User | text |
| Sort | text |
| Limit | number |
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Contact ID | number |
| Entity ID | number |
| Cellphone | text |
| Language | text |
| text | |
| Full name | text |
| Phone | text |
| Is direct user | boolean |
| Has access | boolean |
| Relationships | object |
| Suppliers | object |
| Clients | object |
| Extensions permissions | object |
| Locals | object |
| Profile picture | object |
| User | object |
List FilesSearch
List LocationsSearch
List OperatorsSearch
List QuotesSearch
List Schedule WorksSearch
Input fields[3]
| Field | Type |
|---|---|
| Limit | number |
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Entity ID | number |
| Complete date | text |
| Cost center name | text |
| Completed by ID | number |
| Completed percentage | number |
| Completed date | text |
| Confirmed | boolean |
| Failure ID | number |
| Last status change date | text |
| Last status change operator | text |
| Relationships | object |
| Audit stats | object |
| Buy orders | object |
| Client | object |
| Completed by | object |
| Element registries | object |
| Entity | object |
| Events | object |
| Events planned | object |
| Files | object |
| Gatekeeper answer registries | object |
List Sell OrdersSearch
List Stock StatusSearch
List Stock Transaction BatchesSearch
List Stock TransactionsSearch
Input fields[3]
| Field | Type |
|---|---|
| Filter by Material ID | choice |
| Filter by Operator ID | choice |
| Filter by Warehouse ID | choice |
| Material ID (alt filter) | choice |
| Warehouse ID (alt filter) | choice |
| Created At (from) | date |
| Created At (to) | date |
| Updated At (from) | date |
| Updated At (to) | date |
| Expand (operator) | text |
| Sort Field | text |
| Sort Order | choice |
| Limit | number |
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Warehouse ID | number |
| Material ID | number |
| Quantity | number |
| Action | text |
| Observations | text |
| Cost price | number |
| Created at | text |
| Operator ID | number |
List SuppliersSearch
List WorksSearch
Input fields[3]
| Field | Type |
|---|---|
| Expanded | choice |
| Sort | text |
| Limit | number |
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Calendar ID | number |
| Description | text |
| Type | text |
| Any responsible | boolean |
| Auto close | boolean |
| Auto pilot | boolean |
| Client ID | number |
| Cost center ID | number |
| Entity ID | number |
| Failure ID | number |
| Relationships | object |
| Network status | object |
Create a ClientAction
Input fields[3]
| Field | Type |
|---|---|
NameRequired | text |
| Code | text |
| NIF / VAT Number | text |
| Address | text |
| Postal Code | text |
| City | text |
| Latitude | number |
| Longitude | number |
| Observations | text |
| Country (ISO 3166-1 Alpha-2) | text |
| Create Building | boolean |
| Source Building ID (to replicate from) | number |
| Contacts | array |
| Operators | array |
Output fields[3]
| Field | Type |
|---|---|
| Type | text |
| ID | text |
| Attributes | object |
| Client ID | number |
| Name | text |
| Code | text |
| Nif | text |
| Address | text |
| Postal code | text |
| City | text |
| Country | text |
| Observations | text |
Create a ContactAction
Input fields[3]
| Field | Type |
|---|---|
| Name | text |
| Phone | text |
| Cellphone | text |
| Language | text |
| Direct Permissions | object |
| Default Permissions | boolean |
| Preventive | boolean |
| Failure (Work Orders) | boolean |
| Failure Type | choice |
| Quotes | boolean |
| Work Scheduled Reports | boolean |
| Work Scheduled Reports States | choice |
| Failure Reports | boolean |
| Failure Reports States | choice |
| Show User Info | boolean |
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Contact ID | number |
| Entity ID | number |
| Cellphone | text |
| Language | text |
| Full name | text |
| Phone | text |
| Is direct user | boolean |
| Has access | boolean |
| Relationships | object |
| Suppliers | object |
| Clients | object |
| Extensions permissions | object |
| Locals | object |
| Profile picture | object |
| User | object |
Create a LocationAction
Input fields[3]
| Field | Type |
|---|---|
NameRequired | text |
CodeRequired | text |
ClientRequired | choice |
| Observation | text |
| Address | text |
| Postal Code | text |
| City | text |
| Latitude | text |
| Longitude | text |
| Operators | array |
| Teams (IDs) | array |
| Suppliers | array |
Output fields[3]
| Field | Type |
|---|---|
| Type | text |
| ID | text |
| Attributes | object |
| Local ID | number |
| Name | text |
| Full name | text |
| Code | text |
| Full code | text |
| Observation | text |
| Entity ID | number |
| Date updated | date |
| Has children | boolean |
| Client ID | number |
Create a QuoteAction
Input fields[3]
| Field | Type |
|---|---|
| Client ID | choice |
| Related To Type | choice |
| Related To ID | choice |
| Received Quote Request ID | number |
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Quote ID | number |
| Quote UUID | text |
| Code | number |
| Client ID | number |
| State | text |
| Entity ID | number |
| Created at | text |
| Created by | number |
| Started at | text |
| Started by | number |
| Meta | object |
| Custom fields | object |
Create a Sell OrderAction
Create a SupplierAction
Input fields[3]
| Field | Type |
|---|---|
NameRequired | text |
| Code | text |
| NIF / VAT Number | text |
| Address | text |
| Postal Code | text |
| City | text |
| District / Region / State | text |
| Latitude | number |
| Longitude | number |
| IBAN | text |
| Add to Infraspeak Market | boolean |
| Contacts | array |
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Supplier ID | number |
| Name | text |
| Code | text |
| Vat | text |
| Address | text |
| Postal code | text |
| City | text |
| Area | text |
| Country | text |
| Iban | text |
| Relationships | object |
| Contacts | object |
| Files | object |
| Handshake | object |
| Categories | object |
| Services | object |
| Invite | object |
Create a Work EntryAction
Input fields[3]
| Field | Type |
|---|---|
NameRequired | text |
TypeRequired | choice |
ClientRequired | choice |
Work Type IDRequired | choice |
LocationsRequired | array |
| Description | text |
| Any Responsible | boolean |
| Auto Close | boolean |
| Auto Pilot | boolean |
| Is Protected | boolean |
| Calendar ID | choice |
| Cost Center ID | choice |
| Failure ID | choice |
| Gatekeeper ID | choice |
| Supplier | choice |
| Operators | array |
| Technical Skill IDs | array |
| Gatekeeper Notification Operator IDs | array |
| Recurrence | object |
| Start Date/Time | date |
| End Date/Time | date |
| Frequency | choice |
| Interval | number |
| Auto Schedule | array |
6other input fields
Output fields[3]
| Field | Type |
|---|---|
| Data | array |
| Meta | object |
| Pagination | object |
| Links | object |
| Self | text |
| First | text |
| Last | text |
| Next | text |
Create an OperatorAction
Input fields[3]
| Field | Type |
|---|---|
Full NameRequired | text |
EmailRequired | |
PasswordRequired | secret |
Account TypeRequired | choice |
| Language | choice |
| Timezone | text |
| Cost Per Hour | number |
| Warehouse ID | choice |
| Phone | text |
| Cellphone | text |
| Technical Skill IDs | array |
Output fields[3]
| Field | Type |
|---|---|
| Type | text |
| ID | text |
| Attributes | object |
| Operator ID | number |
| Operator UUID | text |
| Full name | text |
| text | |
| Phone | text |
| Cellphone | text |
| Account | text |
| Language | text |
| Cost per hour | number |
| Warehouse ID | number |
Create StockAction
Delete a ClientAction
Input fields[3]
| Field | Type |
|---|---|
ClientRequired | choice |
Delete a LocationAction
Input fields[3]
| Field | Type |
|---|---|
LocationRequired | choice |
Delete a Sell OrderAction
Input fields[3]
| Field | Type |
|---|---|
Sell order IDRequired | choice |
Delete a SupplierAction
Input fields[3]
| Field | Type |
|---|---|
SupplierRequired | choice |
Delete StockAction
Input fields[3]
| Field | Type |
|---|---|
Stock IDRequired | choice |
Make an API Calluniversal
Transfer All StockAction
Transfer StockAction
Input fields[3]
| Field | Type |
|---|---|
Warehouse From IDRequired | choice |
Warehouse To IDRequired | choice |
Material IDRequired | choice |
QuantityRequired | number |
| Observations | text |
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Stock transaction batch ID | text |
| Operator ID | number |
| Action | text |
| Observations | text |
| Source ID | number |
| Source type | text |
Update a ClientAction
Input fields[3]
| Field | Type |
|---|---|
ClientRequired | choice |
| Name | text |
| Code | text |
| NIF / VAT Number | text |
| Address | text |
| Postal Code | text |
| City | text |
| Latitude | number |
| Longitude | number |
| Observations | text |
| Country (ISO 3166-1 Alpha-2) | text |
Output fields[3]
| Field | Type |
|---|---|
| Type | text |
| ID | text |
| Attributes | object |
| Client ID | number |
| Name | text |
| Code | text |
| Nif | text |
| Address | text |
| Postal code | text |
| City | text |
| Country | text |
| Observations | text |
Update a LocationAction
Input fields[3]
| Field | Type |
|---|---|
LocationRequired | choice |
| Location Type | choice |
| Name | text |
| Code | text |
| Client | choice |
| Operators | array |
| Observation | text |
| Address | text |
| Postal Code | text |
| City | text |
| Latitude | text |
| Longitude | text |
| Activity | text |
| Mean Population | text |
| Schedules Info | text |
| Teams (IDs) | array |
Output fields[3]
| Field | Type |
|---|---|
| Type | text |
| ID | text |
| Attributes | object |
| Local ID | number |
| Name | text |
| Full name | text |
| Code | text |
| Full code | text |
| Observation | text |
| Entity ID | number |
| Date updated | date |
| Has children | boolean |
| Client ID | number |
Update a LocationAction
Update a Sell OrderAction
Update a SupplierAction
Input fields[3]
| Field | Type |
|---|---|
SupplierRequired | choice |
| Name | text |
| Code | text |
| NIF / VAT Number | text |
| Address | text |
| Postal Code | text |
| City | text |
| District / Region / State | text |
| Latitude | number |
| Longitude | number |
| IBAN | text |
| Add to Infraspeak Market | boolean |
| Contacts | array |
Output fields[3]
| Field | Type |
|---|---|
| Data | object |
| ID | text |
| Type | text |
| Attributes | object |
| Relationships | object |
Update a WorkAction
Input fields[3]
| Field | Type |
|---|---|
Work IDRequired | choice |
| Name | text |
TypeRequired | choice |
| Client | choice |
| Work Type ID | choice |
| Locations | array |
| Description | text |
| Any Responsible | boolean |
| Auto Close | boolean |
| Auto Pilot | boolean |
| Is Protected | boolean |
| Calendar ID | choice |
| Cost Center ID | choice |
| Gatekeeper ID | choice |
| Supplier | choice |
| Operators | array |
| Technical Skill IDs | array |
| Recurrence | object |
| Start Date/Time | date |
| End Date/Time | date |
| Frequency | choice |
| Interval | number |
Output fields[3]
| Field | Type |
|---|---|
| ID | text |
| Type | text |
| Attributes | object |
| Calendar ID | number |
| Description | text |
| Type | text |
| Any responsible | boolean |
| Auto close | boolean |
| Auto pilot | boolean |
| Client ID | number |
| Cost center ID | number |
| Entity ID | number |
| Failure ID | number |
| Relationships | object |
| Network status | object |
Update a Work ScheduleAction
Update StockAction
Input fields[3]
| Field | Type |
|---|---|
Stock IDRequired | choice |
| Material ID | choice |
| Quantity | number |
| Warehouse ID | choice |
| Failure ID | choice |
| Schedule Work ID | choice |
| Mean Price | number |
Output fields[3]
| Field | Type |
|---|---|
| Type | text |
| ID | text |
| Attributes | object |
| Stock ID | number |
| Stock movement ID | number |
| Material ID | number |
| Quantity | number |
| Mean price manually updated | boolean |
| Date updated | text |
Templates
Look for Infraspeak templates in the WEXTL template library.
Browse templates →Explore alternative apps
- BlueFolder[2]Field service management software for work orders, technicians, customers, and service history.
- Autotask PSAManages tickets, projects, time entries, resources, and customer relationships for Autotask PSA users.
- AspireField service management for landscaping — estimating, scheduling, production, and billing.
- AcculynxRoofing business management CRM for jobs, leads, estimates, and field production.
- AryeoReal estate media production platform for orders, appointments, and delivery workflows.
References
- WEXTL® Infraspeak Source Code connector implementation.
- Our users use cases and automations.
- Official API Documentation for Infraspeak.
- WEXTL® visual workflow builder data.
Last updated: Jul 24, 2026 18:11
